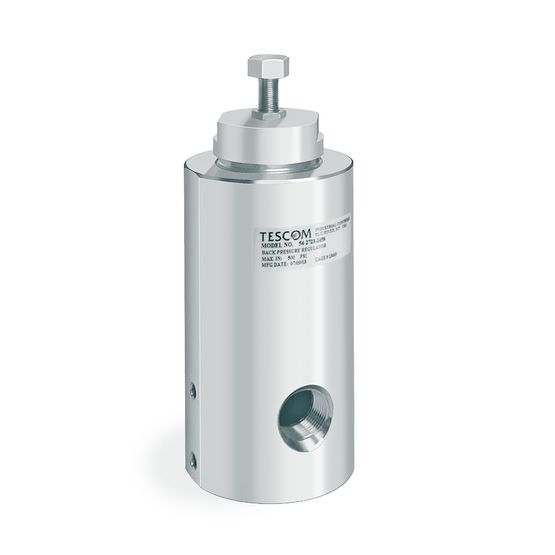

54-2700 Series Hydraulic Backpressure Regulator

54-2700 Series high flow backpressure regulator. The soft seat allows for hydraulic or pneumatic service. Optional with air load for use with the ER5000 Electropneumatic Controller. Ideal for use in process control, high flow pump discharge control and hydraulic test stands.

Maximum Inlet Pressure: Air Loaded: 500 psig / 34.5 bar
Dome Loaded: 5500 psig / 379 bar
Spring Loaded: 500 psig / 34.5 bar

Material: Body: 303 and 316 Stainless Steel
Seat: Glass Filled Peek, Vespel® SP1
O-Rings: Buna-N, Viton®, Ethylene
Propylene
Back-up Rings: Teflon®

Remaining Parts: 303 Stainless Steel

Operating Temperature: -40°F to 165°F / -40°C to 74°C

Port Size & Type: 1
SAE, NPTF, MS33649

Flow Capacity: Cv = 5.0

Load Type: Air, Dome, Spring

Weight: 30 lbs / 13.6 kg
