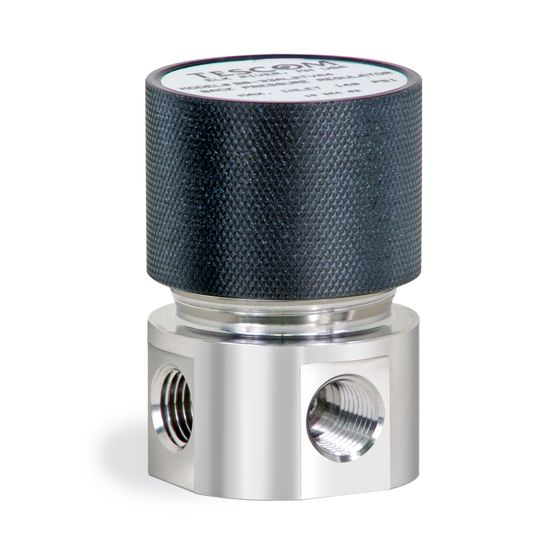

BB1 Series Pressure Regulator

BB-1 Series high pressure, low flow, miniature pressure reducing regulator provides six outlet pressure ranges available up to 1800 psig / 124 bar outlet. This non-venting regulator is small and compact, weighing approximately 0.5 lbs / 0.2 kg in the standard aluminum construction. Ideal for use in portable equipment.

Pressure Rating: Maximum Inlet Pressure: 6000 psig / 414 bar
Outlet Pressure Ranges
Low Pressure: 0-220 psig / 0-15.2 bar
High Pressure: 0-1800 psig / 0-124 bar

Material: Body: Aluminum 6061 (Nickel-plated)
Seat: CTFE, PEEK, or Vespel®
O-Rings: See Part Number Selector
Remaining Parts: 300 Series Stainless Steel or Aluminum

Operating Temperature: -15°F to 165°F / -26°C to 74°C
-65°F to 165°F / -54°C to 74°C with Buna-N O-Rings
Up to 400°F / 204°C with Vespel® or PEEK Seat
